Decorated board. Coloured board. LPM. Melamine. Here’s our quick guide to an essential building product for designers and apprentices.

It’s curious that our industry uses so many different terms to describe a product that’s truly fundamental to contemporary interior design. But no matter what you call it – “decorated board”, “coloured board”, “low-pressure melamine”, “LPM” or something else – it’s important that architects, designers and fabricators understand how it’s made and how to specify it. Because it’s a rare home or commercial fit-out that doesn’t use it somewhere.

Understanding decorated board

Decorated board is made by impregnating decorative paper with melamine resin and bonding it under heat and pressure to both sides of a substrate, typically MDF or particleboard. This creates a panel product with a very similar surface appearance to high-pressure laminate (HPL) and a complementary set of physical properties and performance attributes. While HPL has the impact and wear resistance required for benchtops and other horizontal surfaces, decorated board’s rigid structure is perfect for vertical components, such as cabinetry panels and doors, partitions and wall panelling. (You can read a more detailed comparison between HPL and decorated board here.)

HPL can be applied to vertical surfaces too. But decorated board is much more efficient and cost-effective, because it simply needs to be cut to size and edged. What’s more, it’s incredibly easy to clean and, unlike natural veneers and other materials, it resists fading.

The distinctions between different kinds of decorated board are largely based on the substrate used in their manufacture, which in turn makes them more or less suited to specific applications.

large-MDF large-MDF

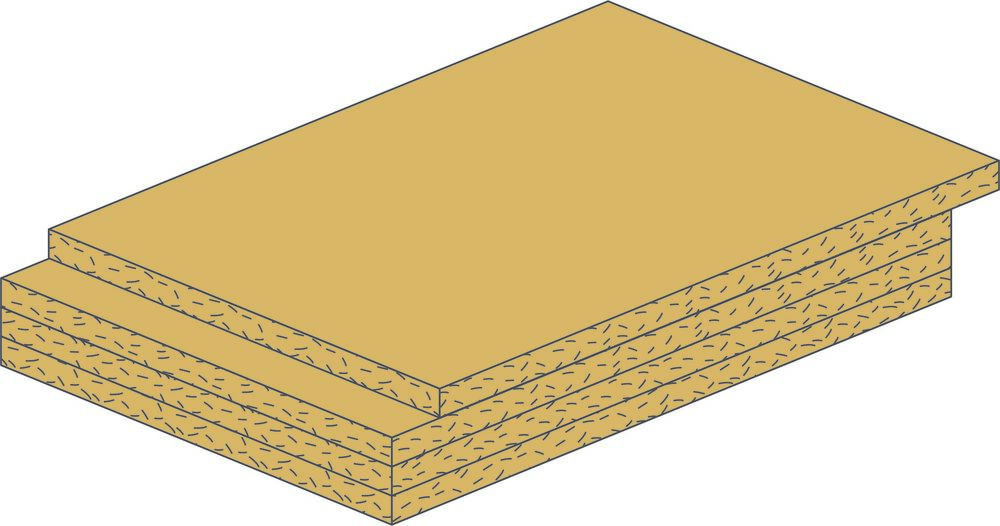

Above: MDF
Laminex Lamiwood MR decorated MDF

Laminex Lamiwood MR is a moisture-resistant decorated MDF used for kitchen and bathroom joinery, laundries and built-in cabinetry such as study nooks and TV units. It’s made with E0 MDF for lower formaldehyde content and healthier indoor air, and can also be specified with a CARB2-accredited MDF core, for projects where compliance with the US-based air quality standard for reduced formaldehyde emissions is required. Lamiwood MR comes in a standard panel size of 2400x1200mm.

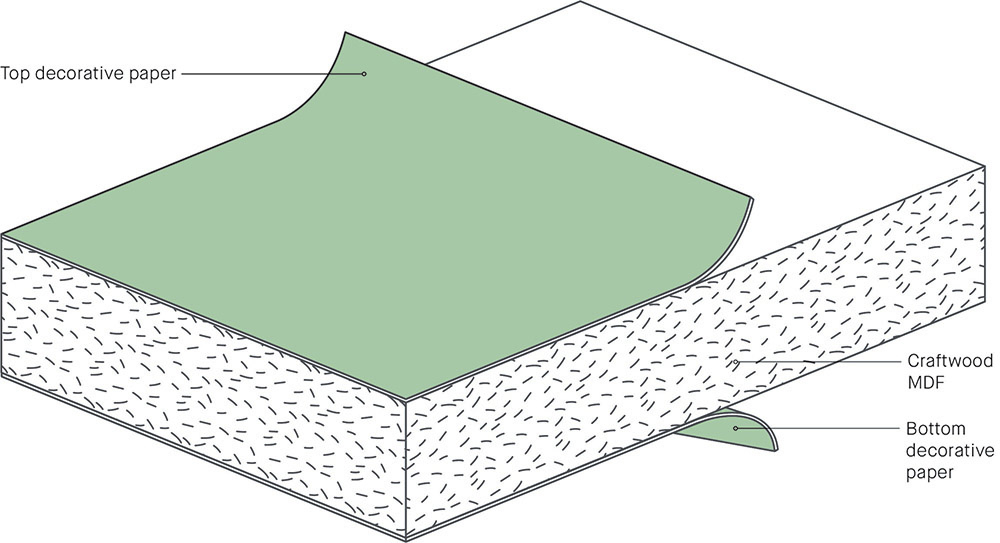

Lamiwood MR Decorated MDF Lamiwood MR Decorated MDF
Above: Lamiwood MR Decorated MDF
Laminex Vertiboard MR decorated particleboard

Laminex Vertiboard MR is a moisture-resistant decorated particleboard. It’s available as part of the Large Format Commercial range, in a panel size of 3600x1800mm, big enough for wall cladding and suitable for retail and office fit-outs such as work stations and office furniture. Vertiboard MR can be specified with an E0-rated particleboard substrate for lower formaldehyde content.

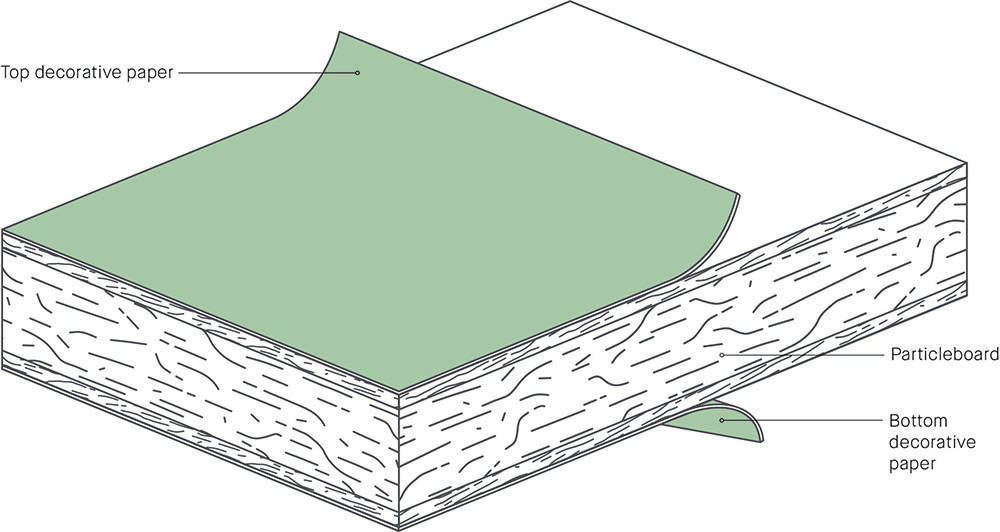

Laminex Vertiboard MR decorated particleboard Laminex Vertiboard MR decorated particleboard
Above: Laminex Vertiboard MR decorated particleboard
Cohesive joinery design, Made to Measure

Offering a variety of joinery options in timeless and contemporary colours and finishes, the Laminex Made to Measure range includes options that are built to your measurements, and delivered ready to install. Whether you’re in need of doors, panels or a new benchtop, Laminex Made to Measure can help simplify your next project, with durable, decorated board products that are designed to withstand all that life can throw at them.

Providing a cohesive and simplified experience, the Laminex Made to Measure range includes Door and Panel options across DesignEdge® Doors and Panels and Cut to Size Compact Laminate Doors and Panels, available to order through our Made to Measure Hub. The range also includes FormWrap® and ColourTech products (available via order form), as well as a range of benchtop solutions in decors from the Laminex Colour Collection.

Explore the Made to Measure range in more detail here.

image2.jpg image2.jpg
Gabriel-Saunders-Laminex-Kitchen-Dark-Scheme-640x434.jpg Gabriel-Saunders-Laminex-Kitchen-Dark-Scheme-640x434.jpg
Calm White_Calacatta Majore Truescale_640x427.webp Calm White_Calacatta Majore Truescale_640x427.webp
AbsoluteMatte Surf and Brushed Stainless Steel_640x427.webp AbsoluteMatte Surf and Brushed Stainless Steel_640x427.webp
image1.jpg image1.jpg
Gumnut_Rocky Bay_640x427.webp Gumnut_Rocky Bay_640x427.webp
Carrara Delicata and AbsoluteMatte White_640x427.webp Carrara Delicata and AbsoluteMatte White_640x427.webp
Olivine Planked Urban Oak and Carrara Delicata_640x427.webp Olivine Planked Urban Oak and Carrara Delicata_640x427.webp
Danish Walnut and Figured Limestone_640x427.webp Danish Walnut and Figured Limestone_640x427.webp
Hushed Pine and Manhattan Concrete_640x427.webp Hushed Pine and Manhattan Concrete_640x427.webp
Outback Clay_Moleskin_VJ100_640x427.webp Outback Clay_Moleskin_VJ100_640x427.webp
Laminex-Elwood-Home-Bathroom-Birchply-304x434.jpg Laminex-Elwood-Home-Bathroom-Birchply-304x434.jpg
Laminex_Cameo-laundry-made-to-measure-colourtech-304x434.jpg Laminex_Cameo-laundry-made-to-measure-colourtech-304x434.jpg
Coastal-Project-White-Cabinetry-304x434.jpg Coastal-Project-White-Cabinetry-304x434.jpg
Laminex-Coastal-White-Kitchen-304x434.jpg Laminex-Coastal-White-Kitchen-304x434.jpg
Coastal-Project-White-Cabinetry-02-304x434.jpg Coastal-Project-White-Cabinetry-02-304x434.jpg
Laminex-Coastal-Kitchen-QLD-304x434.jpg Laminex-Coastal-Kitchen-QLD-304x434.jpg
Laminex Made-to-Measure Doors and Panels  French Navy kitchen Laminex Made-to-Measure Doors and Panels  French Navy kitchen
John-Crooks-Industrial-Bathroom-304x434 John-Crooks-Industrial-Bathroom-304x434
Perth-showroom-white-kitchen-304x434.jpg Perth-showroom-white-kitchen-304x434.jpg
Laminex Inner Urban Made-to-measure Doors and Panels Laminex Inner Urban Made-to-measure Doors and Panels
Laminex-Green-Slate-Laundry-304x434.jpg Laminex-Green-Slate-Laundry-304x434.jpg
Laminex Modern Country Pewter kitchen Laminex Modern Country Pewter kitchen
Laminex-Showroom-Made-to-measure-formwrap-304x434 Laminex-Showroom-Made-to-measure-formwrap-304x434
BBR-FormWrap-Doors-304x434 BBR-FormWrap-Doors-304x434
Made in Australia

It’s important to note that all of the Laminex products mentioned in this story are made right here in Australia. Specifying them not only supports the economy and local communities, it comes with the environmental benefits of reduced transport requirements and a long list of sustainability initiatives being implemented through the products’ design and manufacture.

To access the full Laminex library of tools and resources for fabricators, designers and specifiers, click here.
