Discover Laminex® Waterloo® Partitioning Systems and learn how effortless toilet and shower partitioning can really be. Five different systems cover all applications from offices, retail spaces, health care facilities, sports and recreation venues and everywhere in between. Follow our easy 1, 2, 3 system to explore the range and get a quote.
Step 1 of 3
Explore the systems using the tabs below to get started
-
Pedestal Mounted System
-
Floor Mounted System
-
Freestanding System
-
Privacy Plus System
-
Beam Suspended System
-
Floor to Ceiling System

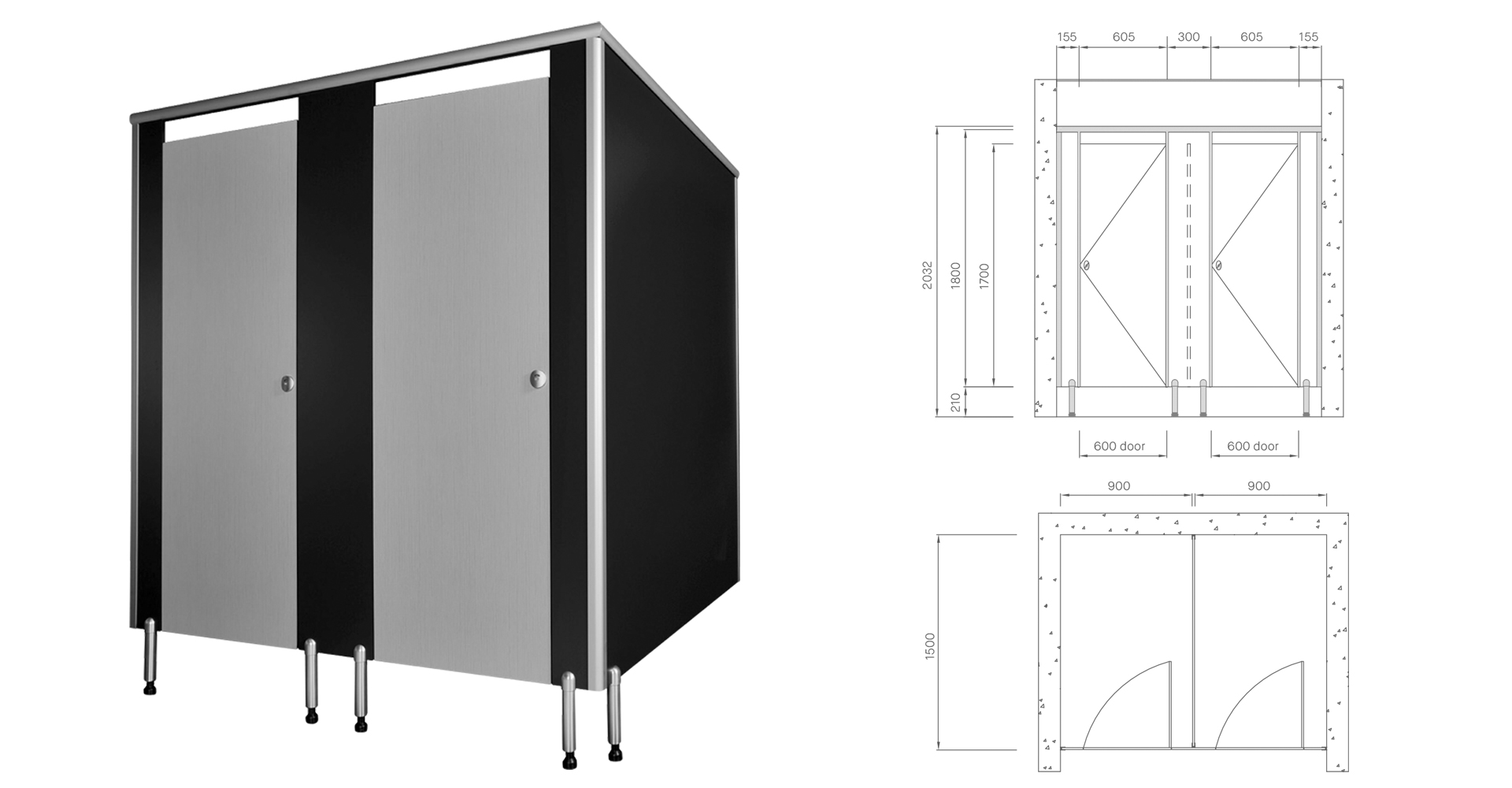

Pedestal Mounted System
Pedestal Mounted System
A functional and affordable system that is mounted off the floor with adjustable anodised aluminum legs, and is braced overhead.
![](/medias/waterloo-selection-p1-1.jpg?context=bWFzdGVyfGltYWdlc3wyNjczMjl8aW1hZ2UvanBlZ3xhREZtTDJoaVlpODRPRGczT0RFME9UYzVOakUwTDNkaGRHVnliRzl2TFhObGJHVmpkR2x2Ymkxd01TMHhMbXB3Wnd8MWRjZTIwNWExM2UxMzgyZjRjZTIzZTk3NDk3ZWJkNDkwNjU3ODA0Njc2NzQ3NmUxMmU1Y2RmNGFlYzFhNzVjOQ)
Panel Substrate
Laminex Decorated Particleboard MR EO (Vertiboard®) 18mm
Laminex Decorated Particleboard MR EO (Vertiboard®) 33mm
Laminex Multipurpose Compact Laminate 13mm
Features
Anodised aluminium headrail in a range of shapes (see options)
Design registered lock/indicator
Design registered concealed hinges and coat hook
Hardware
Concealed fixing anodised aluminium adjustable legs
Stainless steel fixings
Custom extruded corner channels
Snap door inserts
Design registered Slimline Headrail
Delivery and Installation
Flat pack with instructions and tools for your own installation
Installation can be organised by qualified installers
Warranty
Laminex Vertiboard® MR EO Warranty - 7 years
Laminex Compact Laminate - 10 years
Hardware - 1 year
$0.00 ex GST and Shipping
to a project

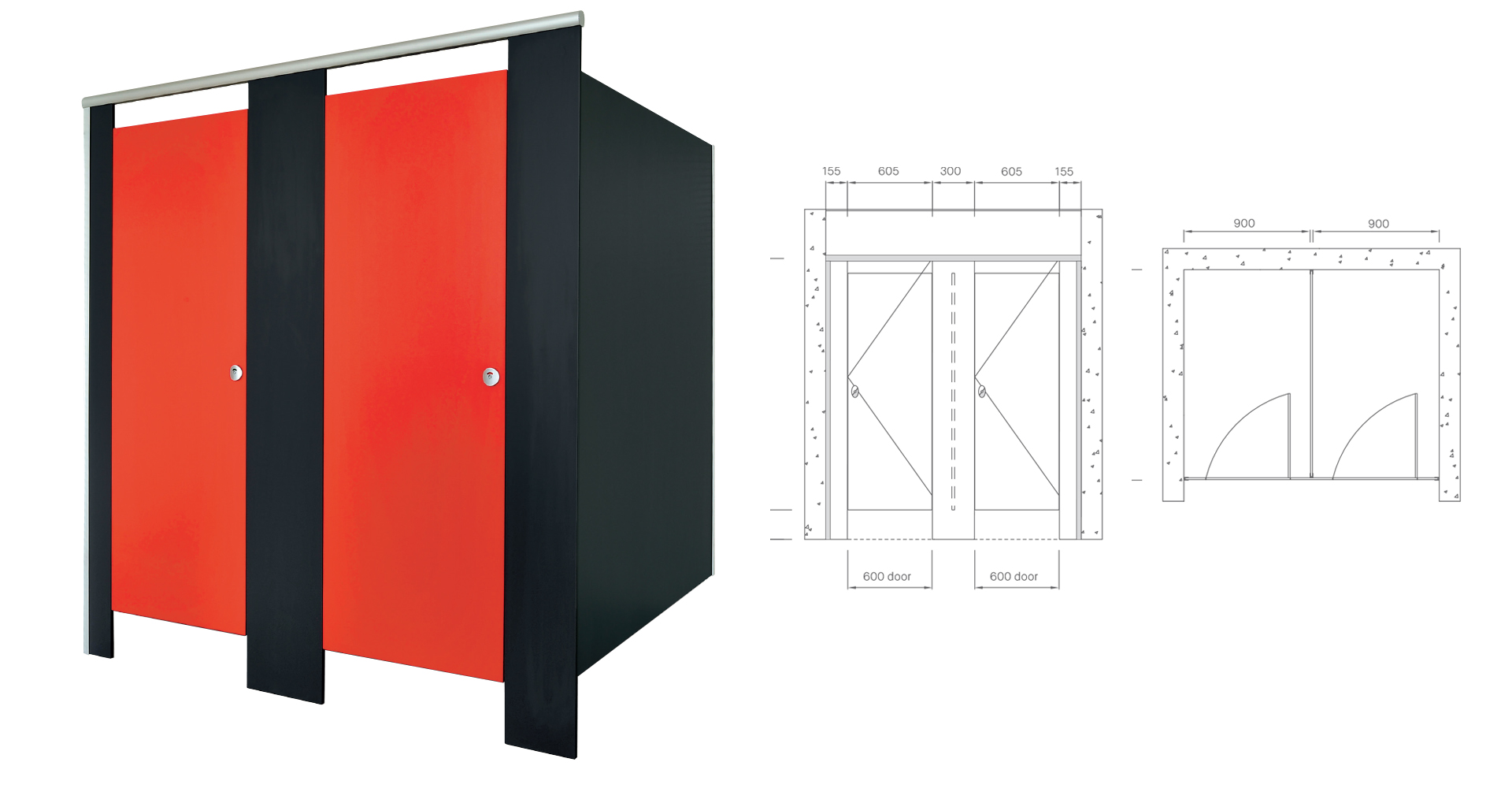

Floor Mounted System
Floor Mounted System*
All about the look, this system has floor mounted front panels with no visible fixings, and is braced overhead.
![](/medias/waterloo-selection-p1-5.jpg?context=bWFzdGVyfGltYWdlc3wzMjM5ODh8aW1hZ2UvanBlZ3xhREE1TDJoaU55ODRPRGczT0RFME9ERTFOemMwTDNkaGRHVnliRzl2TFhObGJHVmpkR2x2Ymkxd01TMDFMbXB3Wnd8NDk3ZjkwZjk4MTNkZjdjM2EyNjA2NTZiMTZmNGU4YWI3NDQyYjZiYThhN2EzNjAzNTg1YjIyMWM0MzhiNjA4ZA)
Panel Substrate
Laminex Multipurpose Compact Laminate 13mm
Features
Anodised aluminium headrail in a range of shapes
Design registered lock/indicator
Design registered concealed hinges and coat hook
Hardware
Stainless steel fixings
U-shaped corner channels
Snap door inserts
Delivery and Installation
Flat pack with instructions and tools for your own installation
Installation can be organised by qualified installers
Warranty
Laminex Compact Laminate - 10 years
Hardware - 1 year
* Compact laminate is not designed for permanent immersion. Please ensure that installation conforms to the National Construction Code and water is not allowed to pool at the base of the partitioning.
$0.00 ex GST and Shipping
to a project

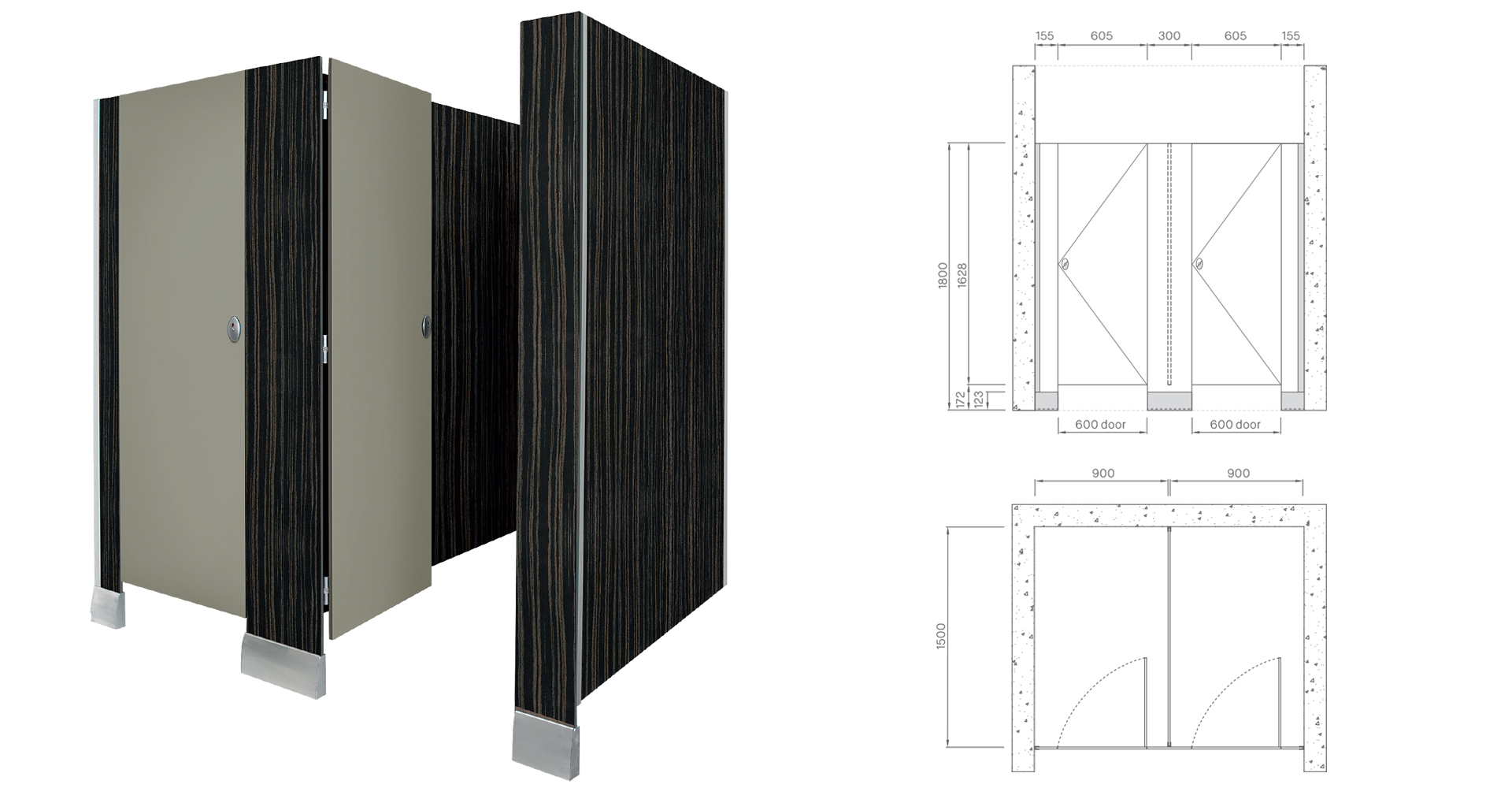

Freestanding System
Freestanding System
A modern style system that is floor mounted on a specifically designed anodised aluminum skirt and does not require overhead bracing.
![](/medias/waterloo-selection-p1-9.jpg?context=bWFzdGVyfGltYWdlc3w1MjA3NzV8aW1hZ2UvanBlZ3xhRFkwTDJobU5pODRPRGczT0RFMU1UYzJNakl5TDNkaGRHVnliRzl2TFhObGJHVmpkR2x2Ymkxd01TMDVMbXB3Wnd8Njc3MzIxYzNmMTlkZjIyM2Q5YzFlYWFiNjM2ZTg0ZWNiYzdmN2E5NjllNzdkZGVjMzlhZDRlOTZmNmY0M2Q0Yw)
Panel Substrate
Laminex Decorated Particleboard MR EO (Vertiboard®) 18mm
Laminex Decorated Particleboard MR EO (Vertiboard®) 33mm
Laminex Multipurpose Compact Laminate 13mm
Features
Design registered lock/indicator
Design registered concealed hinges and coat hook
Design registered ‘skirt’ foot mounting
Hardware
Stainless steel fixings
U-shaped corner channel
Delivery and Installation
Flat pack with instructions and tools for your own installation
Installation can be organised by qualified installers
Warranty
Laminex Vertiboard® MR EO Warranty - 7 years
Laminex Compact Laminate - 10 years
Hardware - 1 year
$0.00 ex GST and Shipping
to a project

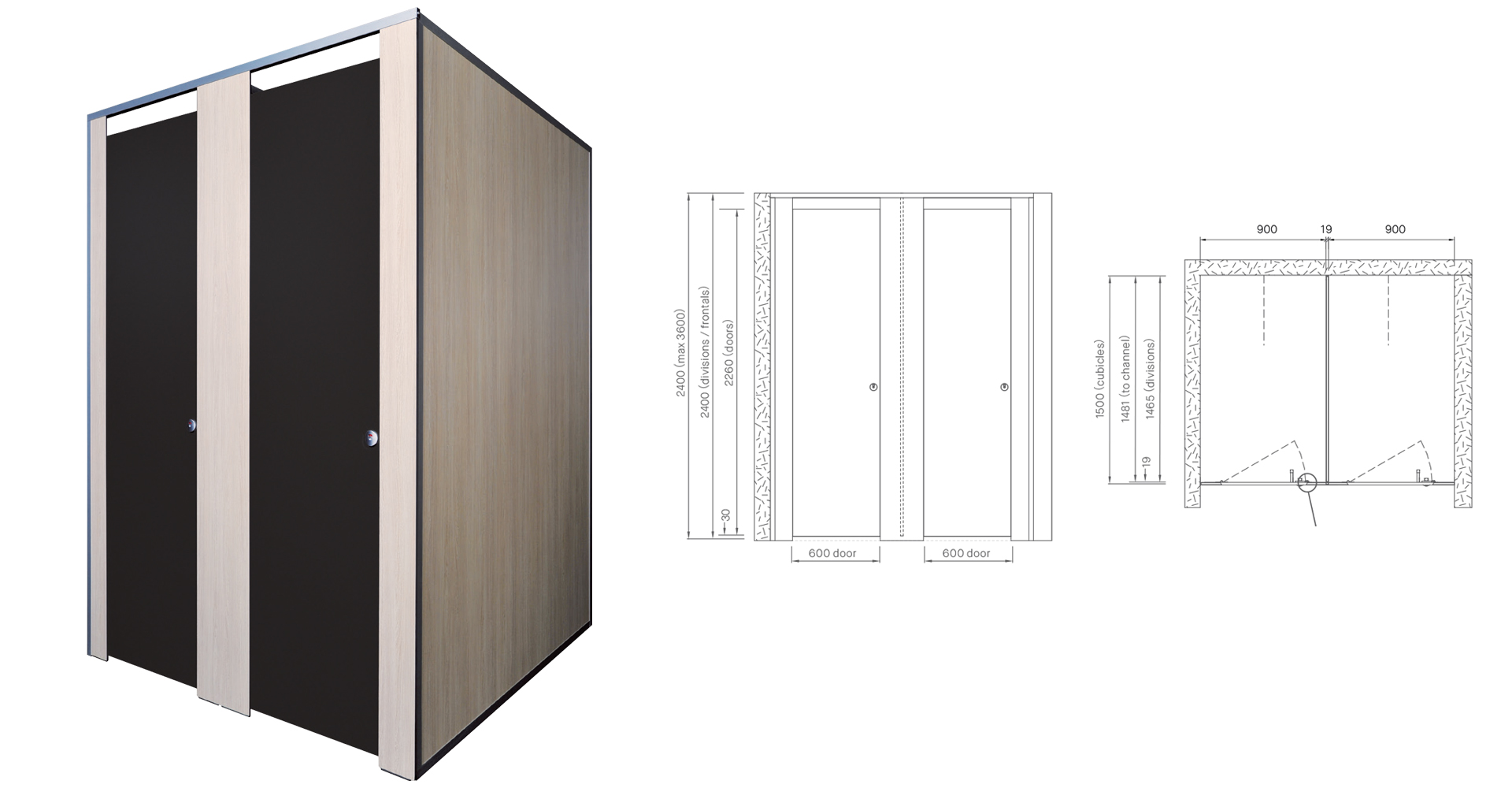

Privacy Plus System
Privacy Plus System*
A full height system, mounted floor to ceiling with a specifically designed privacy beveled door. Suitable for unisex applications.
![](/medias/waterloo-selection-p1-13.jpg?context=bWFzdGVyfGltYWdlc3wzMzU4Mjl8aW1hZ2UvanBlZ3xhRGsxTDJobFl5ODRPRGczT0RFMU5ETTRNelkyTDNkaGRHVnliRzl2TFhObGJHVmpkR2x2Ymkxd01TMHhNeTVxY0djfDMyMTEzZTcyMjA5NTgzYTYxNWMzOGNhMjcxOWNiODc2MTE2NTQ1ZTJiZGFmYmViY2VjOGU0ZTE4OGI1OWJjOGQ)
Panel Substrate
Laminex Multipurpose Compact Laminate 13mm
Hardware
Stainless steel fixings
U-shaped corner channel
Warranty
Laminex Compact Laminate - 10 years
Hardware - 1 year
Bevel
Features
Floor to ceiling divisions & front panels design
Privacy Bevel as standard ensures no visibility into the cubicle when in use
Design registered lock/indicator
Design registered concealed hinges and coat hook
Delivery and Installation
Flat pack with instructions and tools for your own installation
Installation can be organised by qualified installers
* Compact laminate is not designed for permanent immersion. Please ensure that installation conforms to the National Construction Code and water is not allowed to pool at the base of the partitioning.
$0.00 ex GST and Shipping
to a project

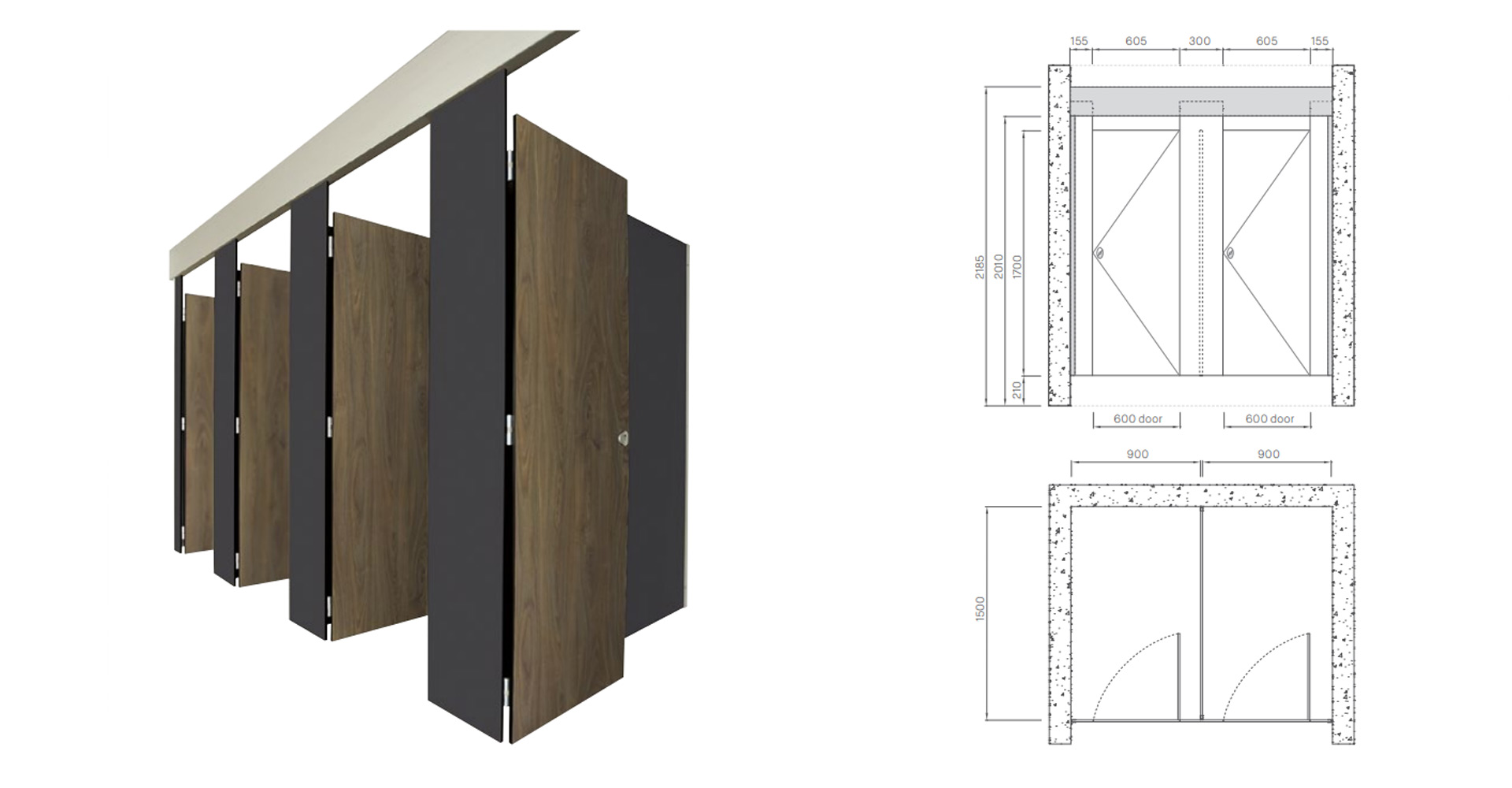

Beam Suspended System
Beam Suspended System
A premium system, that floats off the floor for a sleek look and superior cleanability.
![](/medias/Quote-Tool-Image.jpg?context=bWFzdGVyfGltYWdlc3wxNjk4MTZ8aW1hZ2UvanBlZ3xhR1UwTDJnMFlTODVNVEUwTURjMU56STFPRFUwTDFGMWIzUmxJRlJ2YjJ3Z1NXMWhaMlV1YW5CbnxlNzBiZDA0NjZmZWM0NzBiMzM5ZmUzM2E0ZmM2YWU1OGM2MWE5YTBjYTkyNGFjYjdkMTZlZWRjYmEzYzBlMzRj)
Panel Substrate
Laminex Structural MR E0 MDF 32mm
Laminex Multipurpose Compact Laminate 13mm
Features
Stylish anodised aluminium headrail suspension beam
Design registered lock/indicator
Design registered concealed hinges and coat hook
Hardware
Stainless steel fixings
U-shaped corner channels
Snap door inserts
Design registered beam
Delivery and Installation
Flat pack with instructions and tools for your own installation
Installation can be organised by qualified installers
NB - for cubicles with a return panel or that run over four cubicles
Warranty
Laminex Structural MR E0 MDF - 7 years
Laminex Compact Laminate - 10 years
Hardware - 1 year
$0.00 ex GST and Shipping
to a project

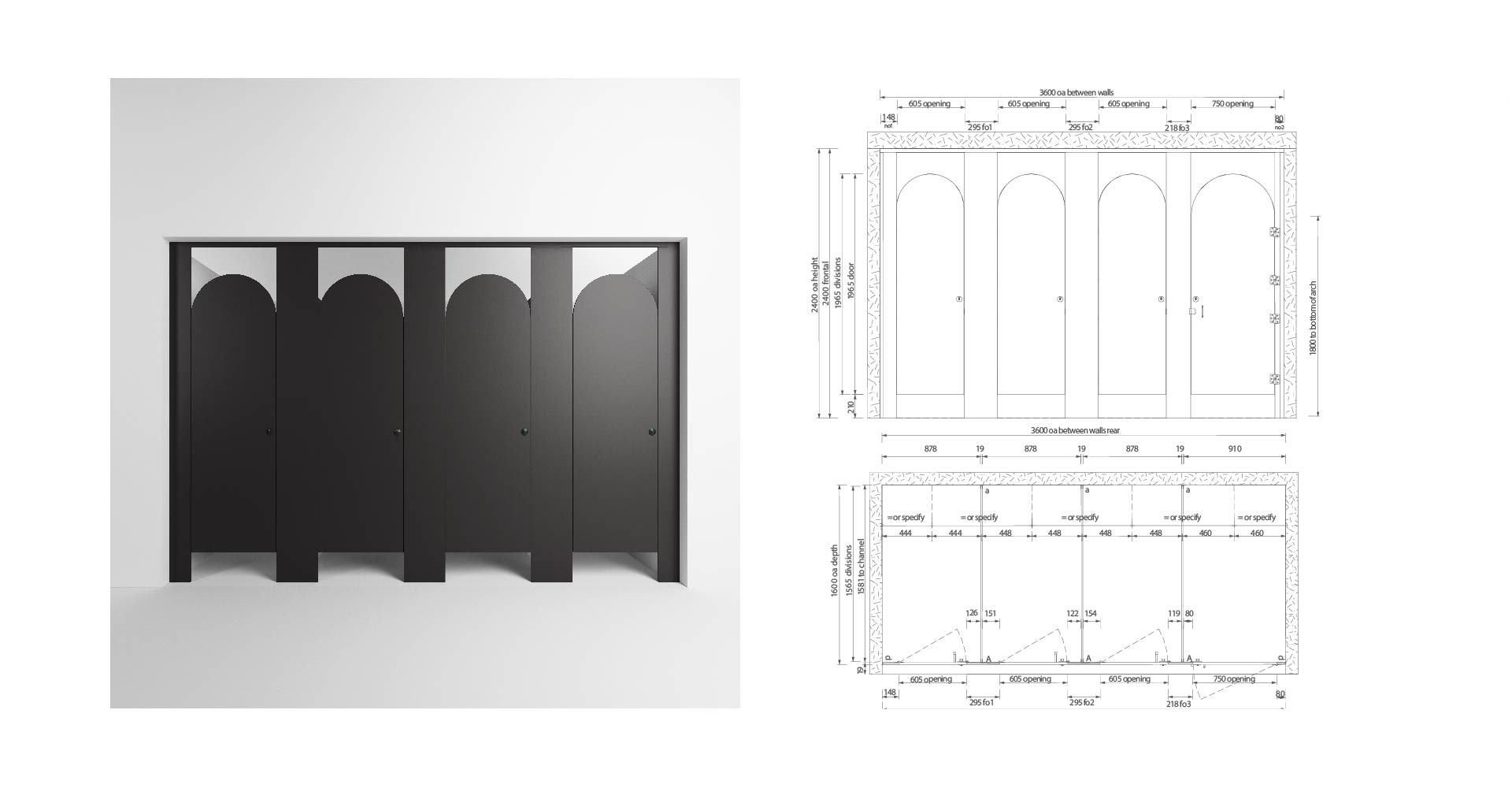

Floor to Ceiling System
Floor to Ceiling System
Our new Floor to Ceiling Partition System features generously arched doors, giving a contemporary new design option for public washroom and end of trip facilities.
![](/medias/Quote-Tool-Image.jpg?context=bWFzdGVyfGltYWdlc3wxNjk4MTZ8aW1hZ2UvanBlZ3xhR1UwTDJnMFlTODVNVEUwTURjMU56STFPRFUwTDFGMWIzUmxJRlJ2YjJ3Z1NXMWhaMlV1YW5CbnxlNzBiZDA0NjZmZWM0NzBiMzM5ZmUzM2E0ZmM2YWU1OGM2MWE5YTBjYTkyNGFjYjdkMTZlZWRjYmEzYzBlMzRj)
Panel Substrate
Laminex Multipurpose Compact Laminate 13mm
Features
Anodised aluminium headrail
Design registered lock/indicator
Design registered concealed hinges and coat hook
Available in arched or square doors
Privacy Bevel as standard ensures no visibility into the cubicle when in use
Hardware
Available in Anodised Aluminium or Matte Black
Stainless steel fixings
U-shaped corner channels
Snap door inserts
Delivery and Installation
Flat pack with instructions and tools for your own installation
Recommended Applications
Ideal for High Traffic and High Wear Applications such as:
- Education Amenities
- Retail Amenities
- Public Spaces Amenities
- End of Trip Facilities
Warranty
Laminex Compact Laminate - 10 years
Door Hardware Replacement Guarantee - 5 Years
